1Kw laser cutter machine

Product Categories

SHANGHAI TAYOR HEAVY INDUSTRY GROUP CO.,LTD

Contact Now

Place of Origin : China

Brand Name : TAYOR

Certification : CE/CCC

Model Number : TF3015 EDGE

MOQ : 1set

Price : Negotiable

Packaging Details : Wooden Case

Delivery Time : 40 days

Payment Terms : T/T ; L/C

Supply Ability : 500 sets/year

Contact Now

Description	Technical Date	Notes
Cutting Area(mm)	1500X3000
X-axis (mm)	3000
Y-axis(mm)	1500
Z-axis(mm)	120
Cutting Thickness(mm)	Mild Steel: 0.5-12 Stainless Steel: 0.5-6 Aluminum: 0.5-6
X-axis , Y-axis cutting accuracy(mm)	0.05
X-axis , Y-axis repositioning accuracy(mm)	0.025
Max Moving Speed(m/min)	80
Accelerated speed (G)	1
Laser Power (w)	1000W
Total Power (Kw)	25Kw
Machine Dimension(LxWxH)	4600 L 2300 W1800 H
Weight(Ton)	6ton
Cutting Table	Single Cutting Table with dust exhausting fan

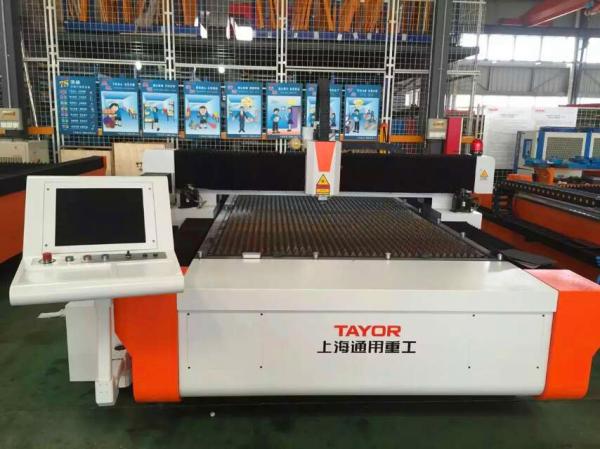

1Kw laser cutter machine Images
